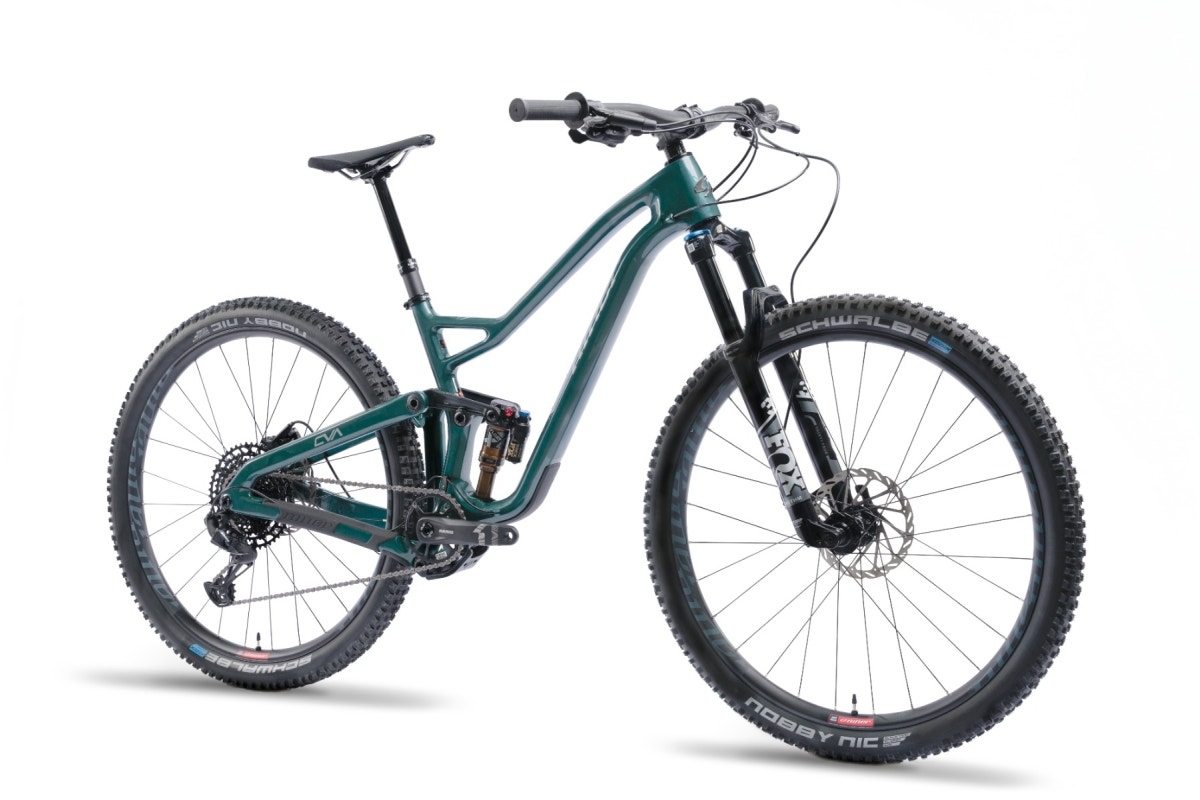

JET 9 RDO - V3 2-STAR SRAM SX EAGLE

Fit to take flight - Merge XC efficiency with trail bike capability, thanks to lightweight RDO carbon and 120mm of supple CVA suspension travel.

In stock



CLEARED FOR TAKEOFF

THE UPDATED JET 9 RDO: FIT TO TAKE FLIGHT

Completely reimagined for 2021, our classic JET 9 RDO reasserts its position as our most popular, most versatile, and most agile trail bike. With hyper-capable frame geometry and 120mm of suspension travel, you’ll float up technical climbs, blast downhills, and fly smoothly over everything in between.

Our first JET 9 left the runway in 2007. With this early head start, we are now a leader in the category. Niner’s expertise in full-suspension 29er mountain bikes has been honed to a razor sharp edge. For this 14-year span, the JET has always maintained a place in our range. The latest iteration affirms the JET 9 RDO as one of the best contemporary short-travel trail bikes available, with the heritage to prove it and a lifetime warranty to back it up.

Just enough travel to take any trail

Our classic JET 9 RDO ratchets up the fun factor when it’s time to fly, but it doesn’t bite back during your climb to cruising altitude. It’s our most popular mountain bike and it consistently earns accolades from media reviewers, everyday riders, and Niner athletes alike.

By blending the pedaling chops of a cross-country bike with the suspension and geometry characteristics of a trail bike, we’ve made our JET 9 RDO into the most versatile bike we could imagine.

Pedaling uphill is limited only by your legs and lungs. Our signature CVA suspension leaves no ounce of effort nor watt of power wasted. Every pedal stroke earns altitude with no loss of efficiency.

Flipping it around and floating back down, your descent is turbulence-free, thanks to small bump sensitivity. Combined with solid mid-stroke support to save full travel for when you really need it, the JET 9 RDO is a smooth flyer in any situation.

Tuned and ready for takeoff

Contemporary frame geometry translates to modern trail manners when you need them most. The roomy cockpit has a comfortable reach for short stem lengths, giving you quick handling and plenty of maneuverability to navigate any airspace. And of course, the slack, 66.5-degree front end and long, 1179mm (size medium) wheelbase contribute stability and self-confidence when you’re dropping into steep descents.

Keeping your powerplant positioned well over the pedals, a 76-degree seat angle makes ascending to altitude a little easier. Paired nicely with short 430mm chainstays, the JET 9 RDO won’t hesitate when crawling up the crux of your favorite testpiece trail.

If your daily dose of dirt includes less pedaling, faster corners, and some heels-down, flat out fall-line chutes, you might want a lower bottom bracket and slacker head tube angle. Not to worry - the built-in flip-chip seatstay pivots allow riders to lower the bottom bracket by a full 8mm and slack out the geometry by half a degree.

The JET engine: Constantly Varying Arc

The beating heart of our updated JET 9 RDO is the Constantly Varying Arc (CVA) suspension system. CVA debuted in 2008 as the first suspension layout made specifically for 29ers. With kinematic updates to suit the specific needs of each bike, it remains our patented, signature suspension system.

Our CVA fundamentals are rock solid: it’s stable yet supple while climbing and pedaling; going downhill, it’s sensitive and supportive; it’s consistent and controlled in every phase of travel.

On the JET 9 RDO, a new trunnion mount shock adds width (and therefore stiffness) to the frame and linkage. More importantly, the bearings at the upper shock fitment allow extra-smooth articulation through the entire rocker arm sweep of 40-degrees during suspension travel. This improves small bump suppleness. Furthermore, trunnion shocks occupy less physical space, allowing a compact form factor.

Niner full suspension bikes feature Enduro MAX Black Oxide pivot bearings. The industry benchmark for this application, the Enduro bearing brand created the MAX designation to indicate more ball bearings per race. This provides better load distribution and is ideal for suspension pivots. And the Black Oxide grade indicates a magnetite surface coating for more corrosion resistance. All in all, these are by far the best pivot bearings available, bar none.

A fuselage that’s fit for flight

Svelte yet stout, the JET 9 RDO exhibits Niner’s characteristic full-suspension form factor. A blend of weight-conscious trimming where possible and strength-enhancing structures where needed gives this trail bike the ideal balance of XC light weight and trail bike sturdiness.

Wide, flat surfaces on the top and downtube help to absorb frontal impacts and vibrations while resisting deflection and twisting under torsional load. Crossmembers in the rocker link and swingarm keep the rear of the bike on lockdown during corners and hard efforts.

In order to get the best possible shifting performance,we designed the smoothest, straightest cable routing possible. Cable housing slides easily through full-sleeve guide tubes in gentle arcs from front to back. An integrated cable cage wicket on both sides of the frame just above the bottom bracket area keeps the housing protected from harm and free to move as the suspension cycle.

More Information
Available Frame Sizes SM, MD, LG, XL
Available Colors MAGNETIC GREY; EMERALD GREEN
Frame NINER RDO CARBON FIBER, CVA SUSPENSION, 120MM TRAVEL, ALUMINUM LINKAGE, ENDURO MAX PIVOT BEARINGS, FULL SLEEVE INTERNAL CABLE ROUTING
Fork FOX 34 FLOAT FACTORY GRIP 2 EVOL, HSC, LSC, HSR, LSR, KASHIMA COAT, 130MM, 110X15MM, 44MM OFFSET
Shock FOX FLOAT X FACTORY EVOL 2 POSITION W/ ADJUST, KASHIMA COAT
Front Wheel Niner Alloy, aluminum clincher, 30mm internal width, 110x15mm, 6-bolt
Rear Wheel Niner Alloy, aluminum clincher, 30mm internal width, 148x12mm, 6-bolt
Front Tire SCHWALBE NOBBY NIC EVO SUPER TRAIL TLE ADDIX SPEEDGRIP 2.6
Rear Tire SCHWALBE NOBBY NIC EVO SUPER TRAIL TLE ADDIX SPEEDGRIP 2.35
Brakes SRAM LEVEL
Brake Levers SRAM LEVEL
Brake Rotors 180/180MM G2CS ROTORS
Chain SRAM SX EAGLE 12SP
Front Shifter N/A
Rear Shifter SRAM SX EAGLE 12SP
Front Derailleur N/A
Rear Derailleur SRAM SX EAGLE 12SP
Cassette SRAM PG 1210 11-50T
Crankset SRAM X1 1K EAGLE DUB, 32T (S/M/L - 170MM, XL - 175MM)
Bottom Bracket SRAM DUB BSA THREADED
Saddle NINER CUSTOM TR WITH CR-MO RAILS, PRINTED NINER GRAPHIC
Seatpost KS LEV SI (S-125MM, M-150MM, L/XL-175MM)
Handlebar RACE FACE AEFFECT R 780MM WIDE, 20MM RISE, 35MM CLAMP
Stem RACE FACE AEFFECT R 40MM, 35MM CLAMP
Headset NINER INTERNAL ZS SHIS DESCRIPTION ZS44/28.6|ZS56/40
Grips NINER GRRRIPS L/O NYLON SOFT COMPOUND
Tech Specs
frame fittings and mounts1 BOTTLE CAGE IN FRONT TRIANGLERear suspension travel120mm
Maximum front suspension140mmFork offset44mm
Shock size165X45MM TRUNNIONShock mounting hardware
UPPER - M10 X 54 TRUNNION, LOWER M8 X 25MM
Suggested shock sag30% (13.5MM)Seatpost size30.9
Seat collar size34.9Cable routingINTERNAL
FRONT DERAILLEURN/AHEADSET SIZESHIS DESCRIPTION ZS44/28.6 | ZS56/40
PIVOT BEARING SPECS(8X) 26 X 17 X 5MM Enduro BO MAX, (2X) 26 X 17 X 10MM Enduro Double Row, (2X) 22 X 10 X 6MM Enduro BO MAXCHAINRING COMPATIBILITYN/A
MAXIMUM CHAINRING SIZE34TQ-FACTORN/A
ISCG COMPATIBILITYISCG 05 FWD MOUNTSBOTTOM BRACKET TYPEBSA THREADED
BIOCENTRIC COMPATIBLE?N/ABRAKE MOUNT TYPEPOST MOUNT
MAXIMUM REAR ROTOR SIZE180MMREAR WHEEL SPACING12X148MM
REAR WHEEL THROUGH AXLE SPEC12 X 182MM, M12 X P1.0, L15MMFRONT WHEEL AXLE SPACINGN/A
FRONT WHEEL THROUGH AXLE SPECN/AMax tire size29 X 2.6
Geometry
Geometry Chart
(A) TT Length (B) Seat Tube Length (C) Chainstay Length (D) Front Center (E) Wheelbase (F) BB Drop (G) Headtube Length (H) Headtube Angle (I) Seattube Angle (J) Standover Height (K) Reach (L) Stack
Metric (MM)
Flip Chip Position High Mode Low Mode - High Mode Low Mode High Mode Low Mode High Mode Low Mode High Mode Low Mode - High Mode Low Mode High Mode Low Mode High Mode Low Mode High Mode Low Mode High Mode Low Mode
SM 574 577 376 430 432 726 726 1148 1149 33 41 95 66.5 66.0 76.0 75.5 688 681 425 419 599 603
MD 603 605 406 430 432 748 748 1179 1180 33 41 110 66.5 66.0 76.0 75.5 698 705 450 444 613 617
LG 631 634 446 430 432 775 776 1210 1211 33 41 125 66.5 66.0 76.0 75.5 727 734 475 469 626 631
XL 660 662 496 430 432 806 807 1241 1242 33 41 140 66.5 66.0 76.0 75.5 778 771 500 494 640 645
Imperial (Inch)
Flip Chip Position High Mode Low Mode - High Mode Low Mode High Mode Low Mode High Mode Low Mode High Mode Low Mode - High Mode Low Mode High Mode Low Mode High Mode Low Mode High Mode Low Mode High Mode Low Mode
SM 22.6 22.7 14.8 17.0 17.1 28.6 28.6 45.2 45.2 1.30 1.61 3.7 66.5 66.0 76.0 75.5 27.0 26.8 16.7 16.4 23.5 23.7
MD 23.7 23.8 16.0 17.0 17.1 29.4 29.5 46.4 46.5 1.30 1.61 4.3 66.5 66.0 76.0 75.5 27.5 27.8 17.7 17.5 24.1 24.3
LG 24.8 25.0 17.6 17.0 17.1 30.5 30.6 47.6 47.7 1.30 1.61 4.9 66.5 66.0 76.0 75.5 28.6 28.9 18.7 18.5 24.6 24.8
XL 26.0 26.0 19.5 17.0 17.1 31.7 31.8 48.8 48.9 1.30 1.61 5.5 66.5 66.0 76.0 75.5 30.6 30.4 19.7 19.4 25.2 25.4
Sizing

Frame Size Recommendations by Height

SM

5'3"–5'9"
1.6–1.75M

MED

5'8"–6'0"
1.73–1.83M

LG

5'11"–6'3"
1.8–1.91M

X-LG

6'3"–6'7"
1.91–2.01M

Inseam Sizing

Bike inseam sizing example chart

For riders who fall between sizes, we recommend sizing down for a more maneuverable ride or sizing up for more stability.
