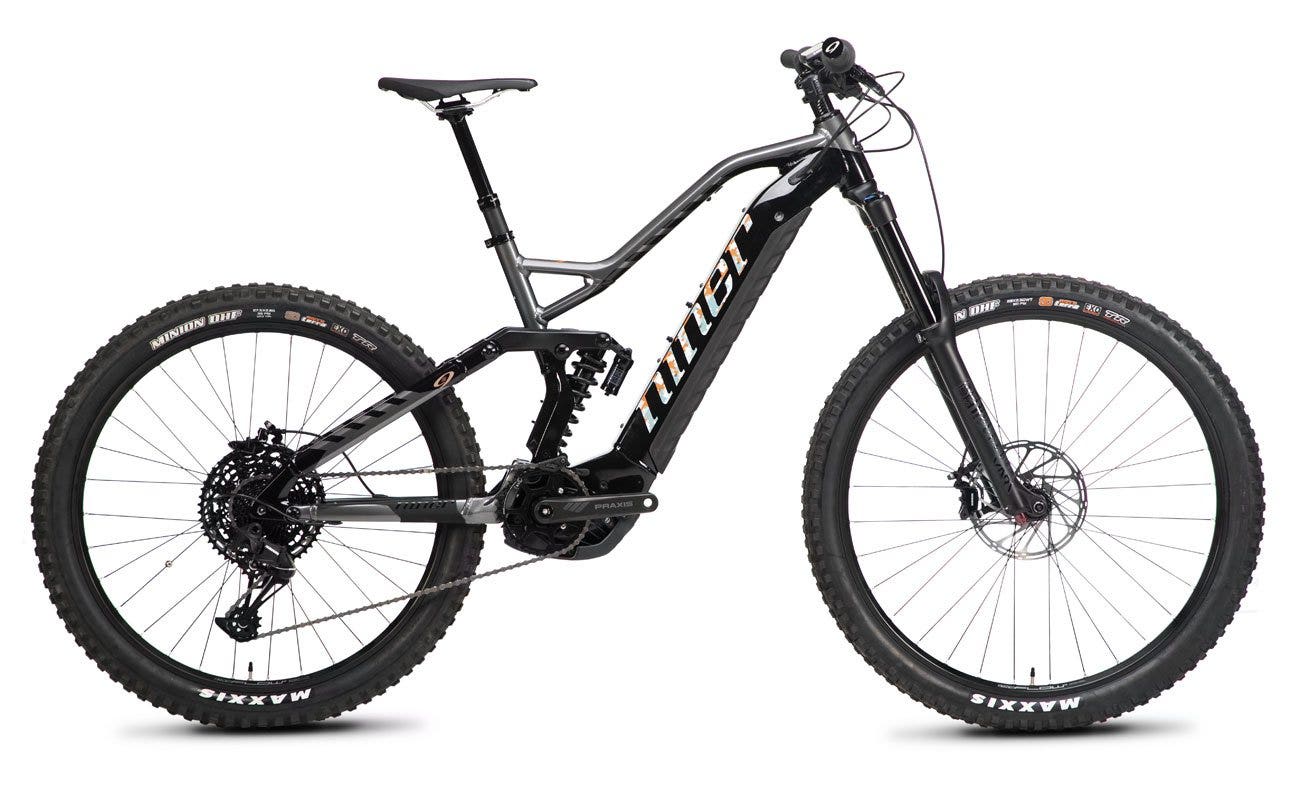

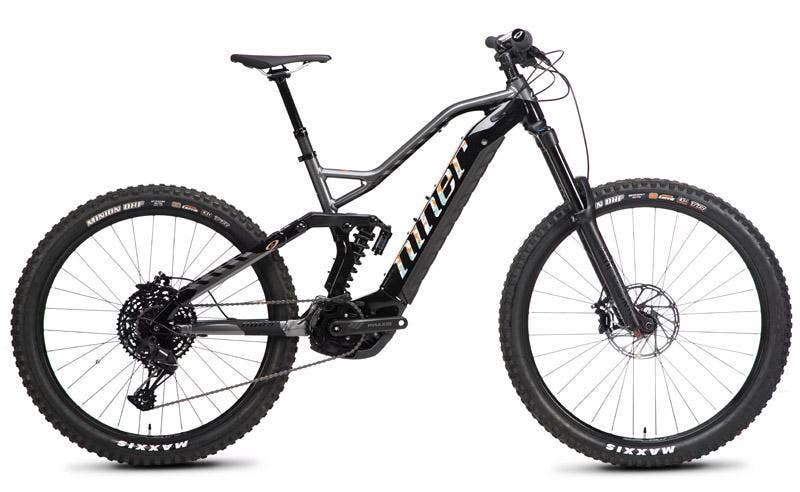

WFO e9

Downhill capable, no lift required

Park the shuttle truck, skip the lift

This 180mm-travel bike defies categorization and opens new realms of terrain.

default value here

Welded 6061-T6 aluminum

Lightweight, stiff, and strong, with forged yokes and 1-piece alloy motor housing.

Bosch motor

Bosch Performance Line CX motor delivers smooth, predictable power. Read More

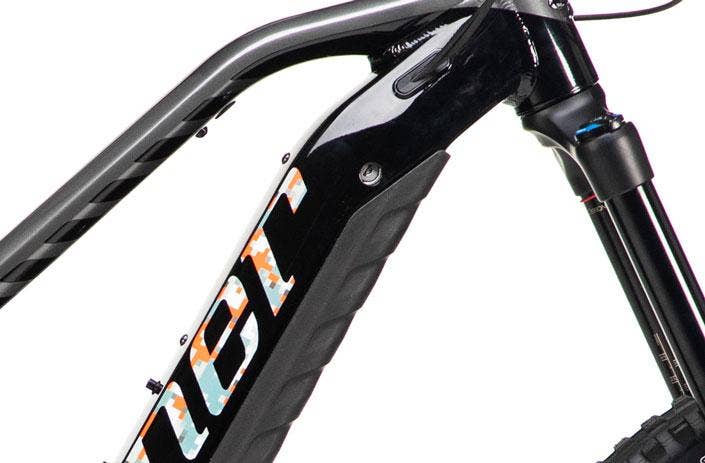

Power Tube 625 battery

625wh external downtube battery offers easy access and robust range of 80km (avg).

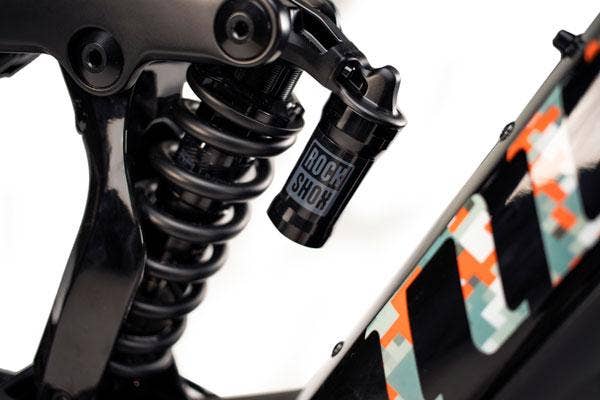

180mm suspension travel

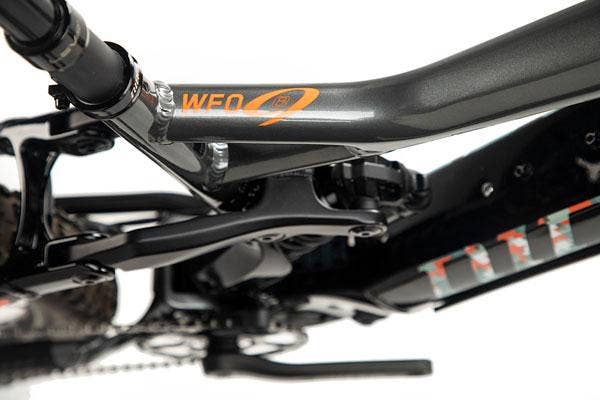

Coil-sprung, Niner tuned Horst-link suspension with “right side up” trunnion mount takes full advantage of bearings in rocker link.

Enduro Max Black Oxide pivot bearings

The smoothest, most durable bearings in the industry. Made for life. Read More

Mixed wheel size

Best of both wheel-size worlds, with 29” front and 27.5+” rear.

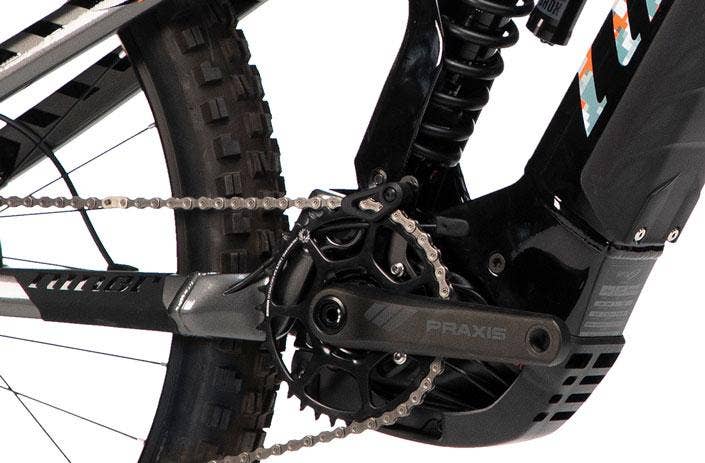

Integrated protection

Bash guard under motor protects against impacts.

WFO e9

€7,779.00 €7,779.00
In stock
Only %1 left
SKU
WFO-e9
Please select attributes

WFO e9 3-STAR SRAM SX EAGLE - USA Specifications

Durable, trail-ready parts round out the USA-spec WFO e9 parts kit. With Rockshox suspension, SRAM drive train and SRAM brakes, it's ready for heavy duty and trouble-free trail rides.

  • Marzocchi Bomber CR Coil 205x65mm Trunnion rear shock
  • SRAM Guide RE Brakes and 200 mm rotors
  • SRAM SX Eagle drivetrain
Available frame sizes SM, MD, LG Available colors Magnetic Grey / Orange Camo

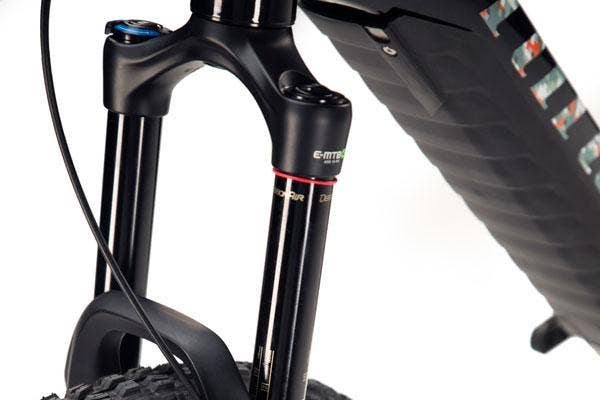

Frame NINER WFO E9 180MM TRAVEL, HYDROFORMED AND WELDED 6061-T6 ALUMINUM, INTEGRATED BATTERY COMPARTMENT Fork ROCKSHOX ZEB R 180MM
Shock MARZOCCHI BOMBER CR COIL 205X65MM TRUNNION (S-400LB, M-450LB, L-500LB) Tubes / Sealant TUBES
Front wheel Stans NoTubes Flow D 29er, Formula CL-811 hub, centerlock, 110x15mm Rear wheel Stans NoTubes Flow D 27.5, Formula ECT 148S hub, centerlock, 148x12mm
Front Tire SCHWALBE EDDY CURRENT EVO SUPER TRAIL TLE ADDIX SOFT 29X2.4 Rear tire SCHWALBE EDDY CURRENT EVO SUPER GRAVITY TLE ADDIX SOFT 27.5X2.6
Brakes SRAM GUIDE RE Brake levers SRAM GUIDE RE
Brake rotors SRAM CENTERLINE 200MM CENTERLOCK Chain SRAM SX EAGLE 12SP
Front shifter N/A Rear shifter SRAM SX EAGLE 12SP
Front derailleur N/A Rear derailleur SRAM SX EAGLE 12SP
Cassette SRAM PG1210 EAGLE 11-50T Crankset PRAXIS BOSCH G4 ISIS 165MM WITH SRAM DM EAGLE RING 36T
Bottom bracket N/A Saddle NINER CUSTOM TR WITH CR-MO RAILS, PRINTED NINER GRAPHIC
Seatpost KS LEV SI (S-100MM, MD-125MM, LG-150MM) Handlebar RACE FACE AEFFECT R 780MM WIDE, 20MM RISE, 35MM CLAMP
Stem RACE FACE AEFFECT R 780MM WIDE, 20MM RISE, 35MM CLAMP Headset NINER INTERNAL ZS SHIS DESCRIPTION ZS44/28.6 | ZS56/40
Grips NINER GRRRIPS L/O NYLON FLANGED

We make every effort to publish accurate build specs, however Niner Bikes reserves the right to make substitutions or changes to bike assembly specification at any time without notice or warning. Product images may not reflect actual specification. Minor variance in color may be visible including fork decal color. Published approximate weights are for size medium (53cm) and may vary by +/- 15% due to manufacturing tolerances.

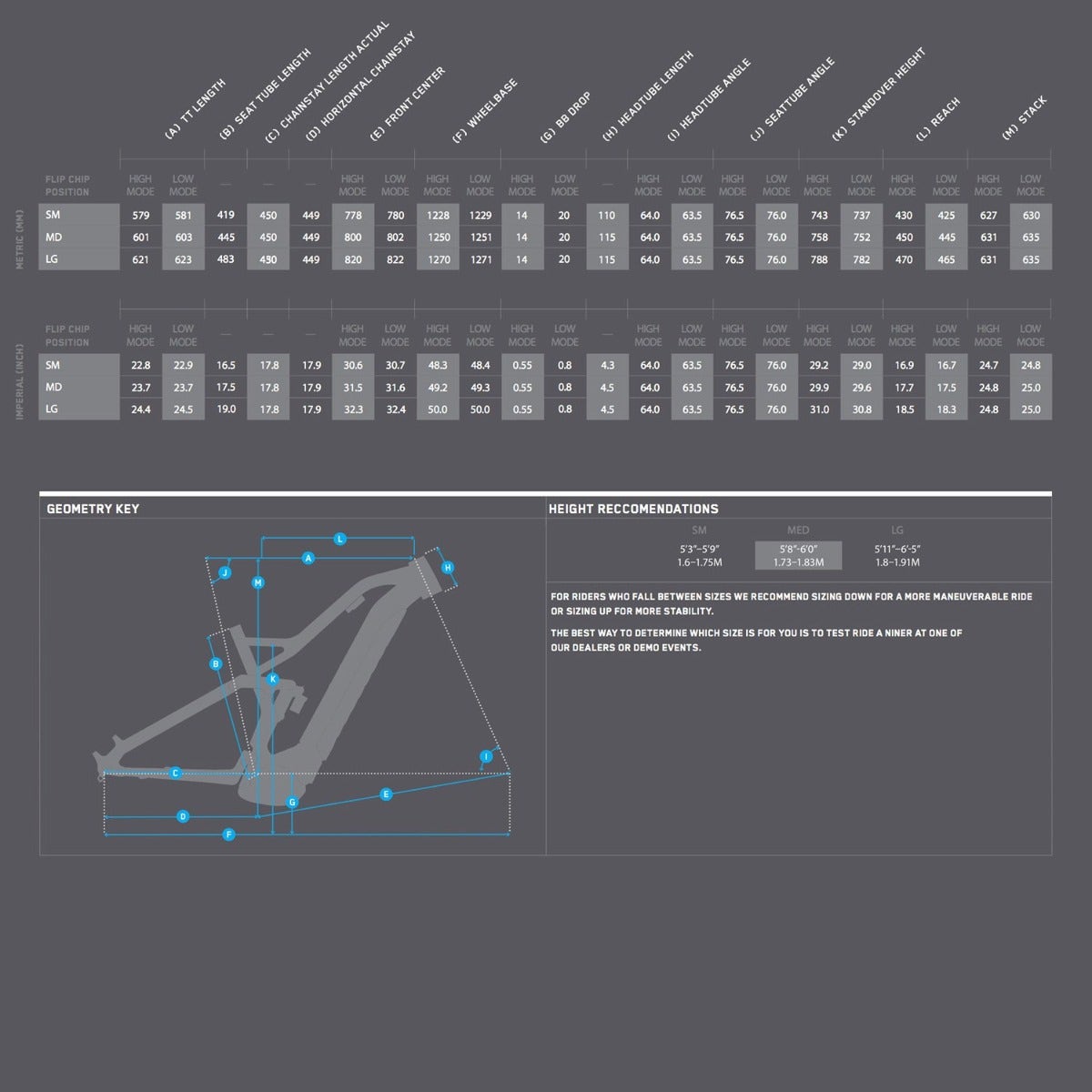

GEOMETRY CHART
TECHNICAL SPECIFICATIONS
