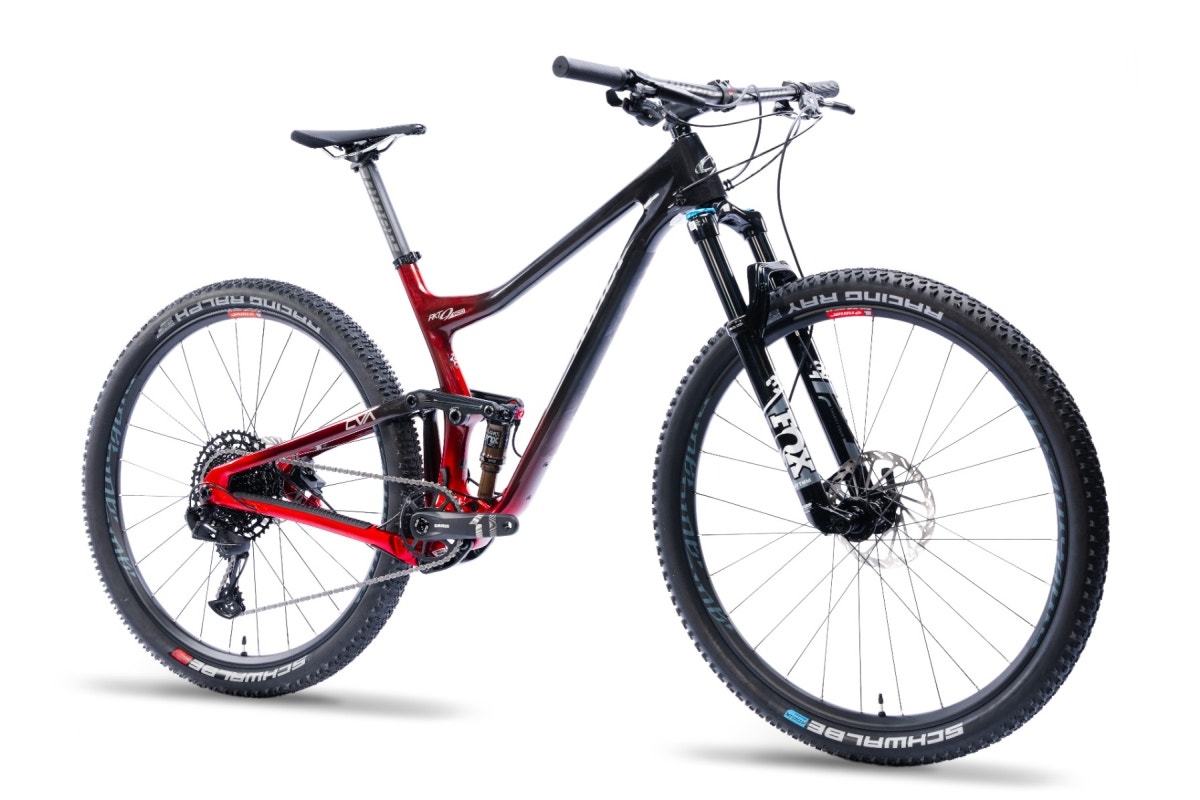

RKT 9 RDO - 2-STAR SRAM SX EAGLE
Out of stock
Ready for liftoff
Race-ready yet trail-capable, this RKT is ready for launch
Chasing the Record Known Time
Designing the RKT 9 RDO, our product team deliberately focused first on race features. The frame is light and stiff, thanks to Niner’s RDO carbon fiber construction. The frame is made with a no-frills focus for fast flights into orbit. The geometry is aggressive and agile, for quick course corrections at escape velocity speeds. And the suspension travel is short and efficient, with handlebar remote lockout for instant, extra rocket booster power if needed.
Yet, we all know that not all space missions are made in the name of science. For those riders who focus instead on fun laps into low-earth orbit, the updated RKT 9 RDO is built for versatility and a playful, trail-friendly attitude.
Responding to many riders’ requests for capability in the face of any feature, and also accommodating the technical demands of modern cross-country racecourses, a geometry flip chip allows for more relaxed frame angles. Clearance to fit wide, 2.5” tires and a 120mm suspension fork expands the universe of possibilities. The seat tube fits a dropper post, and the long, low-slung frame is made for stability at atmospheric reentry speed.
Racing to the edge of the universe
The RKT 9 RDO is a race bike, first and foremost. Blasting off from the start line, 100mm CVA suspension is made to send every ounce of thrust directly to the rear wheel. And remote front and rear suspension lockouts can be deployed for even more efficiency as needed. Achieving escape velocity has never been easier.
In-flight vector adjustments are easy, thanks to the aggressive, agile frame geometry. A 68-degree head tube angle keeps the sharp end tracking accurately and the 75-degree seat tube angle keeps the pilot positioned optimally for maximum power.
Of course, the RKT 9 RDO is built from Niner’s own Race Day Optimized (RDO) carbon fiber. With careful application of the fiber layers and internal molds to maximize compaction of the carbon and resin matrix, Niner RDO frames are light, stiff and strong. They also exhibit comfortable ride characteristics in the face of burning, lactic acid race efforts and supersonic reentry turbulence alike.
A launch vehicle is only as good as the payload it can carry. With that in mind, we included two full size water bottle mounts in the main triangle. There are also threaded accessory mounts on the top tube for extra fuel, mission-critical cargo, supplemental oxygen, or a repair kit.
“Trail Country” Capability
Not everyone is afflicted by uncontrollable lust for lofty podium landings. Some of us just want to blast up to the mesosphere then point it earthward and let gravity take over. When you’re partying the whole way down, a fun fuselage makes all the difference. Most of us Ninerds are nothing if not FUN.
The RKT 9 RDO was designed with features to keep jorts-wearing thrill seekers equally as happy as our slender, spandex-wrapped racers. This bike sports “trail-country” features like clearance for 2.5-inch tires, a flip chip to slack out the geometry by a half degree, and a short, straight seat tube that’s well-suited for a dropper post.
CVA suspension tuning is made for efficient pedaling, but not at the cost of downhill performance. The trunnion mount shock aids lateral stiffness and keeps the suspension articulation smooth and supple off the top. The frame is even made to accept a 120mm suspension fork for riders wanting high-speed hijinks during planetary reentry.
If flannel and denim is your uniform, and your racing goals are focused on fun first rather than finishing first, this RKT 9 RDO is a launch vehicle you can love.
Race ready geometry
Agile, 68-degree head tube angle and forward, 75-degree seat tube angle, with flip chip adjustment built in.
Enduro MAX Black black oxide pivot bearings
We use the smoothest, most durable pivot bearings in the industry. Made by Enduro, they’re built for life. Read More
Tire clearance
Fit tires up to 29x2.5” for any racecourse and all trail conditions
Lifetime warranty
Ride, race, rally. We have you covered with warranty service, small parts, and a support team that actually answers the phone. Read More
RDO carbon fiber
Niner’s premium Race Day Optimized carbon fiber means more strength, higher stiffness, and less weight.Read More
Full sleeve internal routing
Clean internal cable routing for all controls including a dropper post.
"Niner makes plenty of bikes for climbing mountains, but as far as XC bikes go, the RKT is meant for climbing podiums"
"Niner is making a statement with the RKT that the 29er is still the best platform for building a fast, lightweight, and racy mountain bike.”
"The marriage of speed and stability is courtesy of some smart geometry decisions Niner employed while designing this dedicated XC bike."
More Information
Available Frame Sizes | XS, SM, MD, LG, XL |
---|---|
Available Colors | Gloss Carbon/ Silver; Hot Tamale/Gloss Carbon |
Frame | NINER RDO CARBON FIBER, 100MM CVA SUSPENSION, ALUMINUM ROCKER LINKS, ENDURO MAX PIVOT BEARINGS |
Fork | FOX 34 SC FLOAT FACTORY EVOL FIT4, 2 POSITION REMOTE L/O, KASHIMA COAT, 120MM, 110X15MM, 44MM OFFSET |
Shock | FOX FLOAT DPS FACTORY EVOL, 2 POSITION REMOTE L/O, KASHIMA COAT |
Front Wheel | Niner Alloy, aluminum clincher, 25mm internal width, 110x15mm, 6-bolt |
Rear Wheel | Niner Alloy, aluminum clincher, 25mm internal width, 148x12mm, 6-bolt |
Front Tire | SCHWALBE RACING RAY EVO SUPER TERRAIN TLE ADDIX SPEEDGRIP 2.35 |
Rear Tire | SCHWALBE RACING RALPH EVO SUPER TERRAIN TLE ADDIX SPEED 2.35 |
Brakes | SRAM LEVEL |
Brake Levers | SRAM LEVEL |
Brake Rotors | 180/160MM G2CS ROTORS |
Chain | SRAM SX EAGLE 12SP |
Front Shifter | N/A |
Rear Shifter | SRAM SX EAGLE 12SP |
Front Derailleur | N/A |
Rear Derailleur | SRAM SX EAGLE 12SP |
Cassette | SRAM PG 1210 11-50T |
Crankset | SRAM X1 1K EAGLE DUB, 32T (XS/S - 170MM, M/L/XL - 175MM) |
Bottom Bracket | SRAM DUB PF30 |
Saddle | NINER CUSTOM WITH CR-MO RAILS, EMBOSSED NINER GRAPHIC |
Seatpost | NINER ALLOY SEAT POST, 370MM, NINER GRAPHIC |
Handlebar | NINER FLAT TOP ALLOY, 780MM, NINER GRAPHIC |
Stem | NINER ALLOY STEM, NINER GRAPHIC (XS/S/M- 80MM, L/XL- 90MM) |
Headset | NINER INTEGRATED SHIS DESCRIPTION IS42/28.6|IS52/40 |
Grips | NINER GRRRIPS L/O NYLON SOFT COMPOUND |
Tech Specs
frame fittings and mounts | TWO BOTTLE CAGE MOUNTS PLUS ACCESSORY STORAGE MOUNTS ON TOP TUBE | Rear suspension travel | 100mm |
Maximum front suspension | 120mm | fork offset | 44mm |
Shock size | 165x40MM | Shock mounting hardware | UPPER – M10 X 54 TRUNNION; LOWER M8 X 25MM |
Suggested shock sag | 25% - moves the O-ring 9.5mm down the shaft | Seatpost size | 30.9 |
Seat collar size | 34.9 | Cable routing | internal, full sleeve guides; Di2 compatible |
Front derailleur | S3/ Low Direct Mount Front Derailleur | Headset size | 1.125" X 1.5" Tapered Integrated (Campy Style) Head Tube, Headset Included, Cane Creek Description: IS42/28.6 | IS52/40 |
Pivot bearing specs | Sealed Cartridge Enduro Max Black Oxide Bearings - (8x) 26x17x5 | Chainring compatibility | SINGLE, 38T MAX |
Maximum chainring size | 1x max chain ring size = 38T - Boost Chainring Recommended | Q-Factor | 168mm |
ISCG compatibility | no | Bottom bracket type | BSA THREADED |
Biocentric compatible? | no | Brake mount type | Post mount |
Maximum rear rotor size | 180mm | Rear wheel spacing | 148x12mm |
Rear wheel through-axle spec | M12x1.75Px182L | Front wheel axle spacing | 110x15mm |
Front wheel through-axle spec | Max tire size | 29 X 2.5 |
Geometry
(A) TT Length | (B) Seat Tube Length | (C) Rear Center | (D) Front Center | (E) Wheelbase | (F) BB Drop | (G) Headtube Length | (H) Headtube Angle | (I) Seattube Angle | (J) Standover Height | (K) Reach | (L) Stack | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
100mm Fork Travel | |||||||||||||||||||||||
Flip Chip Position | High Mode | Low Mode | - | High Mode | Low Mode | High Mode | Low Mode | High Mode | Low Mode | High Mode | Low Mode | - | High Mode | Low Mode | High Mode | Low Mode | High Mode | Low Mode | High Mode | Low Mode | High Mode | Low Mode | |
XS | 561 | 561 | 351 | 429 | 430 | 673 | 671 | 1100 | 1101 | 40 | 45 | 90 | 68.0 | 67.6 | 75.0 | 74.6 | 688 | 657 | 405 | 401 | 599 | 576 | |
SM | 577 | 577 | 376 | 429 | 430 | 690 | 688 | 1117 | 1118 | 40 | 45 | 95 | 68.0 | 67.6 | 75.0 | 74.6 | 698 | 670 | 420 | 416 | 613 | 590 | |
MD | 599 | 599 | 406 | 429 | 430 | 712 | 712 | 1139 | 1140 | 40 | 45 | 100 | 68.0 | 67.6 | 75.0 | 74.6 | 727 | 672 | 440 | 436 | 626 | 595 | |
LG | 626 | 626 | 446 | 429 | 430 | 740 | 740 | 1167 | 1169 | 40 | 45 | 110 | 68.0 | 67.6 | 75.0 | 74.6 | 727 | 701 | 465 | 461 | 626 | 604 | |
XL | 661 | 661 | 497 | 429 | 430 | 769 | 776 | 1196 | 1204 | 40 | 45 | 120 | 68.0 | 67.6 | 75.0 | 74.6 | 778 | 736 | 497 | 493 | 640 | 614 | |
120mm Fork Travel | |||||||||||||||||||||||
Flip Chip Position | High Mode | Low Mode | - | High Mode | Low Mode | High Mode | Low Mode | High Mode | Low Mode | High Mode | Low Mode | - | High Mode | Low Mode | High Mode | Low Mode | High Mode | Low Mode | High Mode | Low Mode | High Mode | Low Mode | |
XS | 561 | 561 | 351 | 430 | 429 | 679 | 679 | 1107 | 1108 | 33 | 38 | 90 | 67.0 | 66.6 | 74.0 | 73.6 | 674 | 668 | 395 | 391 | 590 | 593 | |
SM | 577 | 577 | 376 | 430 | 429 | 696 | 695 | 1124 | 1125 | 33 | 38 | 95 | 67.0 | 66.6 | 74.0 | 73.6 | 684 | 679 | 410 | 406 | 594 | 598 | |
MD | 599 | 599 | 406 | 430 | 429 | 718 | 717 | 1146 | 1147 | 33 | 38 | 100 | 67.0 | 66.6 | 74.0 | 73.6 | 687 | 681 | 430 | 426 | 599 | 602 | |
LG | 626 | 626 | 446 | 430 | 429 | 746 | 746 | 1176 | 1177 | 33 | 38 | 110 | 67.0 | 66.6 | 74.0 | 73.6 | 715 | 710 | 456 | 451 | 609 | 612 | |
XL | 661 | 661 | 497 | 430 | 429 | 775 | 775 | 1204 | 1205 | 33 | 38 | 120 | 67.0 | 66.6 | 74.0 | 73.6 | 750 | 744 | 481 | 476 | 618 | 622 |
Sizing
Frame Size Recommendations by Height
X-SM
5'0"–5'5"
1.53–1.65M
SM
5'3"–5'9"
1.6–1.75M
MED
5'8"–6'0"
1.73–1.83M
LG
5'11"–6'3"
1.8–1.91M
X-LG
6'3"–6'7"
1.91–2.01M
Inseam Sizing
For riders who fall between sizes, we recommend sizing down for a more maneuverable ride or sizing up for more stability.
